• Large color touchscreen display.
• Supports comprehensive bedside monitoring with early warning score (EWS) and interval monitoring.
• Able to integrate into your current EMR with options for WIFI, Ethernet, and Bluetooth.

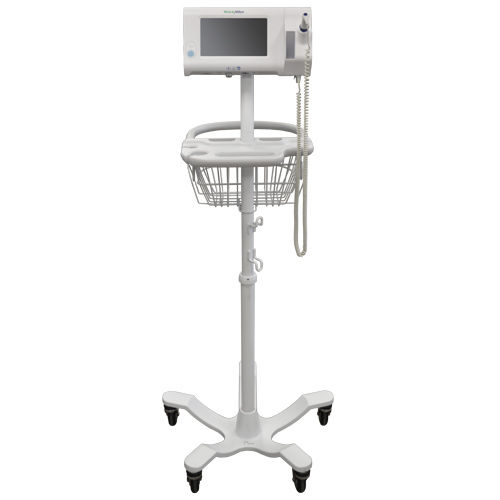

• Multiple mounting options include rolling stands and wall mounts.

Dimensions

• Height: 6.3” (16.1 cm)
• Width: 9.2” (23.4 cm)
• Depth: 2.3” (5.8 cm)
• Weight: 2.9 lbs (1.3 kg)

SpO2

• Measurement Range: 1 to 100%
• Pulse Rate Range: Masimo: 25 to 240 bpm; Nellcor: 25 to 240 bpm; Nonin: 40 to 240 bpm
• SpO2 Accuracy: Masimo: ± 2 digits; Nellcor: ± 3 digits; Nonin: ± 3 digits
• Pulse Rate Accuracy: Masimo: ± 3 digits; Nellcor: ± 3 digits; Nonin: ± 3 digits

NIBP

• Cuff Inflation Target: Adult: 160 mmHg; Pediatric: 140 mmHg; Neonate: 90 mmHg
• Systolic Range: Adult/Pediatric: 30 to 260 mmHg; Neonate: 20 to 120 mmHg
• Diastolic Range: Adult/Pediatric: 20 to 220 mmHg; Neonate: 10 to 110 mmHg
• MAP Range: Adult/Pediatric: 23 to 230 mmHg; Neonate: 13 to 110 mmHg
• Blood Pressure Accuracy: ±5 mmHg mean error, 8 mmHg SD
• BP Determination Time: 15 seconds typical; 150 seconds max
• Overpressure Cutoff: Adult/Pediatric: 300 mmHg ± 15 mmHg; Neonate: 150 mmHg maximum
• Pulse Rate Range: Adult/Pediatric: 30 to 200 bpm; Neonate: 35 to 220 bpm
• Pulse Rate Accuracy: ± 5.0% (±3 bpm)

Temperature

• Measurement Range: SureTemp Plus: 80 to 110°F (26.7 to 43.3°C); Braun: 68 to 108°F (20 to 42.2°C)
• Calibration Accuracy: SureTemp Plus: ±0.2°F (±0.1°C); Braun: ±0.4°F (for temps up to 107.6°F), ±0.5°F (for temps higher than 107.6°F)
• Determination Time: Oral: Approximately 4-6 seconds; Adult Axillary (18 years and older): Approximately 15 seconds; Pediatric Axillary (17 years and younger): Approximately 10 seconds; Rectal: Approximately 10 seconds; Tympanic: Approximately 3 seconds

Electrical

• AC Power Supply: 15V at 2.33A
• Operating Time (Integrated 2-Cell Battery): Up to 12 hours with a fully charged battery
• Battery Recharge Time: 4 hours
• Operating Time (APM with 9-Cell Battery): Up to 17 hours
